Sea-Bird Scientific SUNA Optical Nitrate Sensor
Con una óptica mejorada y muestreo inteligente adaptativo incorporado, el SUNA V2 mide la concentración de nitratos con una precisión y una estabilidad líderes en el sector y en las más diversas condiciones ambientales. La amplia gama de prestaciones opcionales disponibles para el SUNA V2 hace de este sensor una solución eficaz y rentable para la medición habitual de la concentración de nitratos.

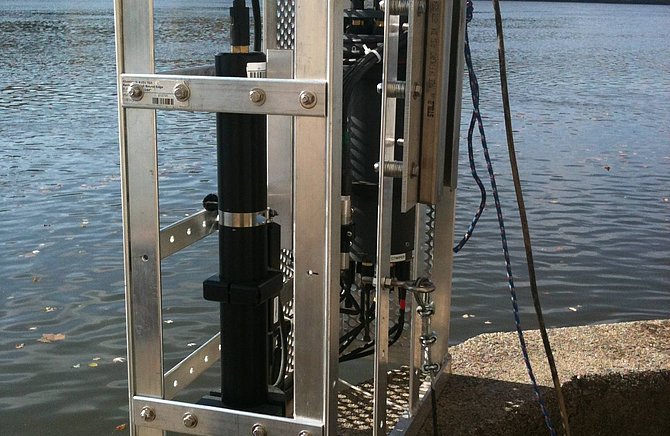

- Instalación fija.
- Nitrato.
- Alta precisión, sin productos químicos, medición de nitratos in situ.
- SDI-12, RS-232.
- Opcional: recorrido reducido de 5 mm para un mejor rendimiento durante tormentas con caudal elevado o turbidez intensa
- La lógica de muestreo adaptativa ajusta automáticamente las operaciones ópticas a las condiciones ambientales en tiempo real para aplicaciones con un alto nivel de materia orgánica disuelta coloreada (CDOM)
- Control activo de las incrustaciones gracias al limpiador totalmente integrado que asegura un registro de datos preciso y estable a largo plazo y disminuye el número de visitas in situ
| Mechanical | SUNA with Wiper |
| Material | Titanium |
| Rated Depth | 100 m |
| Weight (in air) | 4.8 kg |
| Pathlength | 10 mm or 5 mm |
| Length | 588 mm/ 583 mm |
| Diameter | 63 mm |
| Temp Range, Operation | -2 – 35 °C |
| Temp Range, Storage | -20 – 50 °C |
| Electrical | |
| Input | 8 – 18 VDC |
| Input, Sensor with Wiper | 8 – 15 VDC |
| Current Draw, Operation | ~ 625 mA at 12V |
| Current Draw, Standby | ~ 20 mA at 12V |
| Light Source | UV Deuterium Lamp (900 hr lifetime) |
| Communication Interface | RS232; Analog 4 – 20 mA; (USB, SDI-12 optional) |
| Data Storage | 2GB (optional) |
| Optical | |
| Spectral Range | 190-370 nm |
| Pathlength | 10 mm (5 mm optional) |
| Nitrate Measurement Accuracy | |
| Concentration Range | 10 mm pathlength |
| Calibration | Sensor Specific* |
| up to 14 mg N/L | 0.028 mg N/L or 10% |
| up to 28 mg N/L | 0.028 mg N/L or 15% |
| up to 42 mg N/L | 0.028 mg N/L or 20% |
| up to 56 mg N/L | out of range |
| Calibration | Class Based** |
| up to 14 mg N/L | 0.035 mg N/L or 20% |
| up to 28 mg N/L | 0.035 mg N/L or 25% |
| up to 42 mg N/L | 0.035 mg N/L or 30% |
| up to 56 mg N/L | out of range |
| Concentration Range | 5 mm pathlenght |
| Calibration | Sensor Specific* |
| up to 14 mg N/L | 0.056 mg N/L or 10% |
| up to 28 mg N/L | 0.056 mg N/L or 15% |
| up to 42 mg N/L | 0.056 mg N/L or 15% |
| up to 56 mg N/L | 0.056 mg N/L or 15% |
| Calibration | Class Based** |
| up to 14 mg N/L | 0.063 mg N/L or 20% |
| up to 28 mg N/L | 0.063 mg N/L or 25% |
| up to 42 mg N/L | 0.063 mg N/L or 25% |
| up to 56 mg N/L | 0.063 mg N/L or 25% |
| * A sensor specific calibration uses extinction coefficients from the sensor itself | |
| ** A class based calibration uses extinction coefficients that are the averager of many sensors | |
| Nitrate Measurement Precision | |
| Processing Configuration | Seawater or Freshwater with T-S Correction |
| Short-term precision (3 sigma) | 0.004 mg N/L |
| Change (“drift”) per hr of lamp time | <0.004 mg N/L |
| Processing Configuration | Seawater (0-40PSU) |
| Short-term precision (3 sigma) | 0.034 mg N/L |
| Change (“drift”) per hr of lamp time | <0.014 mg N/L |
| Limit of Detection and Limit of Quantification | |
| Processing Configuration | Seawater or Freshwater with T-S Correction |
| Limit of Detection | 0.004 mg N/L |
| Limit of Quantification | 0.014 mg N/L |
| Processing Configuration | Seawater (0-40 PSU) |
| Limit of Detection | 0.034 mg N/L |
| Limit of Quantification | 0.112 mg N/L |
